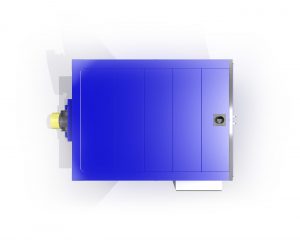

EC Series walk in Ovens
01 | Gas or electric
02 | up to 500F
03 | welded steel
04 | Lasts for decades
FLEXIBILe, versatile walk in ovens
The Precision Quincy EC industrial oven model line provides customers with versatility. This walk in oven model line’s extreme flexibility is derived from its ability to be configured in virtually unlimited ways. The EC oven series is designed with an a-la-carte configuration philosophy that allows the customer to tailor their walk in oven to their specific process without paying for more than they need or want. EC walk in ovens are well suited to handle most industrial heat processes requiring a 500f maximum operating temperature. Applications include annealing, curing, powder coating, composites curing, dehydrating, hydrogen de-embrittlement, drying, heat setting, heat shrinking, pre-heating, stress-relieving, testing, and many more.
Engineered to bring you value
As a Precision Quincy customer you’ll discover the significant inherent value in our industrial oven design from your initial purchase price on through to your day-to-day operations and maintenance costs.
Precision Quincy EC Series walk in ovens are constructed with high quality aluminized welded steel construction inside and outside. Utilizing only the highest quality components allows us to build walk in ovens that literally last for decades, bringing tremendous value to you, our customer.
oven design that give you options
The EC industrial walk in oven line is available as both Class “A” and Class “B”, in almost any voltage, and can be heated by either gas or electric heat power. Like all of our Precision Quincy batch ovens and custom conveyor ovens, these walk in ovens come with a limited warranty and are factory wired and tested before shipment. The EC industrial walk in oven meets or exceeds NFPA-86, NFPA-70, OSHA & UL requirements.
Contact our sales and engineering professionals to clarify your requirements, get your questions answered, and learn about our oven solutions! Just send us a message or call 302-602-8738.
Model | Interior Width | Interior Depth | Interior Height | Exterior Width | Exterior Depth | Max Temp (F) | Capacity (ft³) |
---|---|---|---|---|---|---|---|
EC-404-6 | 48 | 48 | 72 | 76 | 115 | 500 | 96 |
EC-404-7 | 48 | 48 | 84 | 76 | 115 | 500 | 112 |
EC-404-8 | 48 | 48 | 96 | 76 | 115 | 500 | 128 |
EC-406-6 | 48 | 72 | 72 | 79 | 139 | 500 | 144 |
EC-406-7 | 48 | 72 | 84 | 79 | 139 | 500 | 168 |
EC-406-8 | 48 | 72 | 96 | 79 | 139 | 500 | 192 |
EC-408-6 | 48 | 96 | 72 | 79 | 163 | 500 | 192 |
EC-408-7 | 48 | 96 | 84 | 79 | 163 | 500 | 224 |
EC-408-8 | 48 | 96 | 96 | 79 | 163 | 500 | 256 |
EC-410-6 | 48 | 120 | 72 | 82 | 187 | 500 | 240 |
EC-410-7 | 48 | 120 | 84 | 82 | 187 | 500 | 280 |
EC-410-8 | 48 | 120 | 96 | 82 | 187 | 500 | 320 |
EC-412-6 | 48 | 144 | 72 | 82 | 211 | 500 | 288 |
EC-412-7 | 48 | 144 | 84 | 82 | 215 | 500 | 336 |
EC-412-8 | 48 | 144 | 96 | 82 | 215 | 500 | 384 |
EC-414-6 | 48 | 168 | 72 | 85 | 239 | 500 | 336 |
EC-414-7 | 48 | 168 | 84 | 85 | 239 | 500 | 392 |
EC-414-8 | 48 | 168 | 96 | 85 | 239 | 500 | 448 |
EC-416-6 | 48 | 192 | 72 | 85 | 263 | 500 | 384 |
EC-416-7 | 48 | 192 | 84 | 85 | 263 | 500 | 448 |
EC-416-8 | 48 | 192 | 96 | 85 | 263 | 500 | 512 |
EC-504-6 | 60 | 48 | 72 | 88 | 115 | 500 | 120 |
EC-504-7 | 60 | 48 | 84 | 88 | 115 | 500 | 140 |
EC-504-8 | 60 | 48 | 96 | 88 | 115 | 500 | 160 |
EC-506-6 | 60 | 72 | 72 | 91 | 139 | 500 | 180 |
EC-506-7 | 60 | 72 | 84 | 91 | 139 | 500 | 210 |
EC-506-8 | 60 | 72 | 96 | 91 | 139 | 500 | 240 |
EC-508-6 | 60 | 96 | 72 | 91 | 163 | 500 | 240 |
EC-508-7 | 60 | 96 | 84 | 91 | 163 | 500 | 280 |
EC-508-8 | 60 | 96 | 96 | 91 | 163 | 500 | 320 |
EC-510-6 | 60 | 120 | 72 | 94 | 187 | 500 | 300 |
EC-510-7 | 60 | 120 | 84 | 94 | 191 | 500 | 350 |
EC-510-8 | 60 | 120 | 96 | 94 | 191 | 500 | 400 |
EC-512-6 | 60 | 144 | 72 | 94 | 215 | 500 | 360 |
EC-512-7 | 60 | 144 | 84 | 94 | 215 | 500 | 420 |
EC-512-8 | 60 | 144 | 96 | 94 | 215 | 500 | 480 |
EC-514-6 | 60 | 168 | 72 | 97 | 239 | 500 | 420 |
EC-514-7 | 60 | 168 | 84 | 97 | 239 | 500 | 490 |
EC-514-8 | 60 | 168 | 96 | 97 | 239 | 500 | 560 |
EC-516-6 | 60 | 192 | 72 | 97 | 263 | 500 | 480 |
EC-516-7 | 60 | 192 | 84 | 97 | 263 | 500 | 560 |
EC-516-8 | 60 | 192 | 96 | 97 | 263 | 500 | 640 |
EC-604-6 | 72 | 48 | 72 | 100 | 115 | 500 | 144 |
EC-604-7 | 72 | 48 | 84 | 100 | 115 | 500 | 168 |
EC-604-8 | 72 | 48 | 96 | 100 | 115 | 500 | 192 |
EC-606-6 | 72 | 72 | 72 | 103 | 139 | 500 | 216 |
EC-606-7 | 72 | 72 | 84 | 103 | 139 | 500 | 252 |
EC-606-8 | 72 | 72 | 96 | 103 | 139 | 500 | 288 |
EC-608-6 | 72 | 96 | 72 | 103 | 163 | 500 | 288 |
EC-608-7 | 72 | 96 | 84 | 103 | 167 | 500 | 336 |
EC-608-8 | 72 | 96 | 96 | 103 | 167 | 500 | 384 |
EC-610-6 | 72 | 120 | 72 | 106 | 191 | 500 | 360 |
EC-610-7 | 72 | 120 | 84 | 106 | 191 | 500 | 420 |
EC-610-8 | 72 | 120 | 96 | 106 | 191 | 500 | 480 |
EC-612-6 | 72 | 144 | 72 | 106 | 215 | 500 | 432 |
EC-612-7 | 72 | 144 | 84 | 106 | 215 | 500 | 504 |
EC-612-8 | 72 | 144 | 96 | 106 | 215 | 500 | 576 |
EC-614-6 | 72 | 168 | 72 | 109 | 239 | 500 | 504 |
EC-614-7 | 72 | 168 | 84 | 109 | 239 | 500 | 588 |
EC-614-8 | 72 | 168 | 96 | 109 | 239 | 500 | 672 |
EC-616-6 | 72 | 192 | 72 | 109 | 263 | 500 | 576 |
EC-616-7 | 72 | 192 | 84 | 109 | 263 | 500 | 672 |
EC-616-8 | 72 | 192 | 96 | 109 | 263 | 500 | 768 |
EC-704-6 | 84 | 48 | 72 | 112 | 115 | 500 | 168 |
EC-704-7 | 84 | 48 | 84 | 112 | 115 | 500 | 196 |
EC-704-8 | 84 | 48 | 96 | 112 | 115 | 500 | 224 |
EC-706-6 | 84 | 72 | 72 | 115 | 139 | 500 | 252 |
EC-706-7 | 84 | 72 | 84 | 115 | 139 | 500 | 294 |
EC-706-8 | 84 | 72 | 96 | 115 | 143 | 500 | 336 |
EC-708-6 | 84 | 96 | 72 | 115 | 167 | 500 | 336 |
EC-708-7 | 84 | 96 | 84 | 115 | 167 | 500 | 392 |
DSUS-12-462-5 | 48 | 72 | 28 | 95.5 | 105.7 | 1250 | 56 |
EC-708-8 | 84 | 96 | 96 | 115 | 167 | 500 | 448 |
EC-710-6 | 84 | 120 | 72 | 118 | 191 | 500 | 420 |
EC-710-7 | 84 | 120 | 84 | 118 | 191 | 500 | 490 |
EC-710-8 | 84 | 120 | 96 | 118 | 191 | 500 | 560 |
EC-712-6 | 84 | 144 | 72 | 118 | 215 | 500 | 504 |
EC-712-7 | 84 | 144 | 84 | 118 | 215 | 500 | 588 |
EC-712-8 | 84 | 144 | 96 | 118 | 215 | 500 | 672 |
EC-714-6 | 84 | 168 | 72 | 121 | 239 | 500 | 588 |
EC-714-7 | 84 | 168 | 84 | 121 | 239 | 500 | 686 |
EC-714-8 | 84 | 168 | 96 | 121 | 245 | 500 | 784 |
EC-716-6 | 84 | 192 | 72 | 126 | 263 | 500 | 672 |
EC-716-7 | 84 | 192 | 84 | 126 | 267 | 500 | 784 |
EC-716-8 | 84 | 192 | 96 | 126 | 267 | 500 | 896 |
EC-804-6 | 96 | 48 | 72 | 124 | 115 | 500 | 192 |
EC-804-7 | 96 | 48 | 84 | 124 | 115 | 500 | 224 |
EC-804-8 | 96 | 48 | 96 | 124 | 115 | 500 | 256 |
EC-806-6 | 96 | 72 | 72 | 127 | 139 | 500 | 288 |
EC-806-7 | 96 | 72 | 84 | 127 | 143 | 500 | 336 |
EC-806-8 | 96 | 72 | 96 | 127 | 143 | 500 | 384 |
EC-808-6 | 96 | 96 | 72 | 127 | 167 | 500 | 384 |
EC-808-7 | 96 | 96 | 84 | 127 | 167 | 500 | 448 |
EC-808-8 | 96 | 96 | 96 | 130 | 167 | 500 | 512 |
EC-810-6 | 96 | 120 | 72 | 130 | 191 | 500 | 480 |
EC-810-7 | 96 | 120 | 84 | 130 | 191 | 500 | 560 |
EC-810-8 | 96 | 120 | 96 | 130 | 191 | 500 | 640 |
EC-812-6 | 96 | 144 | 72 | 133 | 215 | 500 | 576 |
EC-812-7 | 96 | 144 | 84 | 133 | 215 | 500 | 672 |
EC-812-8 | 96 | 144 | 96 | 133 | 215 | 500 | 768 |
EC-814-6 | 96 | 168 | 72 | 138 | 239 | 500 | 672 |
EC-814-7 | 96 | 168 | 84 | 133 | 245 | 500 | 784 |
EC-814-8 | 96 | 168 | 96 | 138 | 245 | 500 | 896 |
EC-816-6 | 96 | 192 | 72 | 138 | 263 | 500 | 768 |
EC-816-7 | 96 | 192 | 84 | 138 | 269 | 500 | 896 |
EC-816-8 | 96 | 192 | 96 | 138 | 269 | 500 | 1024 |
