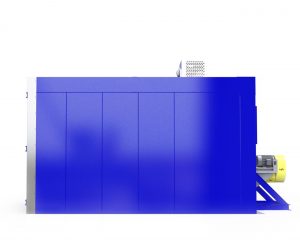

HD5b SERIES INDUSTRIAL OVENS

The HD5B Oven model line provides customers with the ultimate in oven performance in a low external height package.

01 | Low external height

02 | high airflow rate

03 | exceptional uniformity

04 | high energy transfer rates

FLEXIBILITY. VERSATILITY. CONFIGURABILITY.

The Precision Quincy HD5B Oven model line provides customers with the ultimate in oven performance in a low external height package. Designed for customers with low ceiling heights, this model line’s high performance is derived from its high airflow rate and standard top return duct. These combine to produce an oven with exceptional uniformity and high energy transfer rates saving the customer valuable time and money. The HD5B oven line comes with Horizontal-Vertical Airflow standard, but can also be configured in the shelf cart friendly Full Horizontal Airflow Configuration. These ovens are well suited to handle most industrial heat processes requiring a 650f maximum operating temperature. Applications include annealing, curing, powder coating, glass heat soak testing, composites curing, dehydrating, hydrogen de-embrittlement, drying, heat setting, heat shrinking, heat–treating, pre-heating, stress-relieving, testing, and many more.

Engineered to bring you value

The HD5B oven line is designed to bring our customer value: both in initial purchase price as well as operations and maintenance cost. These ovens are constructed with high quality aluminized welded steel construction inside and outside. Utilizing only highest quality components allows us to build ovens that literally last for decades bring tremendous value to customer.

designed to give you options

The HD5B industrial walk-in oven line is available as both Class “A” and Class “B”, in almost any voltage, and can be heated by either gas or electric heat power. Like all Precision Quincy ovens, these ovens come with a limited warranty and are factory wired and tested before shipment. The HD5B walk in oven meets or exceeds NFPA-86, NFPA-70, OSHA & UL requirements.

Contact our sales and engineering professionals to clarify your requirements, get your questions answered, and learn about our oven solutions! Just send us a message or call 302-602-8738.

Model	Interior Width	Interior Depth	Interior Height	Exterior Width	Exterior Depth	Max Temp (F)	Capacity (ft³)
HD5B-404-6	48	48	72	82	113	650	96
HD5B-404-7	48	48	84	82	113	650	112
HD5B-404-8	48	48	96	82	113	650	128
HD5B-406-6	48	72	72	82	137	650	144
HD5B-406-7	48	72	84	82	137	650	168
HD5B-406-8	48	72	96	82	137	650	192
HD5B-408-6	48	96	72	82	161	650	192
HD5B-408-7	48	96	84	82	165	650	224
HD5B-408-8	48	96	96	86	165	650	256
HD5B-410-6	48	120	72	86	189	650	240
HD5B-410-7	48	120	84	86	189	650	280
HD5B-410-8	48	120	96	86	189	650	320
HD5B-412-6	48	144	72	86	213	650	288
HD5B-412-7	48	144	84	86	213	650	336
HD5B-412-8	48	144	96	90	213	650	384
HD5B-414-6	48	168	72	86	237	650	336
HD5B-414-7	48	168	84	90	237	650	392
HD5B-414-8	48	168	96	86	237	650	448
HD5B-416-6	48	192	72	90	261	650	384
HD5B-416-7	48	192	84	86	261	650	448
HD5B-416-8	48	192	96	90	265	650	512
HD5B-504-6	60	48	72	94	113	650	120
HD5B-504-7	60	48	84	94	113	650	140
HD5B-504-8	60	48	96	94	113	650	160
HD5B-506-6	60	72	72	94	137	650	180
HD5B-506-7	60	72	84	94	137	650	210
HD5B-506-8	60	72	96	98	141	650	240
HD5B-508-6	60	96	72	98	165	650	240
HD5B-508-7	60	96	84	98	165	650	280
HD5B-508-8	60	96	96	98	165	650	320
HD5B-510-6	60	120	72	98	189	650	300
HD5B-510-7	60	120	84	98	189	650	350
HD5B-510-8	60	120	96	102	189	650	400
HD5B-512-6	60	144	72	98	213	650	360
HD5B-512-7	60	144	84	98	213	650	420
HD5B-512-8	60	144	96	98	213	650	480
HD5B-514-6	60	168	72	98	237	650	420
HD5B-514-7	60	168	84	102	237	650	490
HD5B-514-8	60	168	96	102	241	650	560
HD5B-516-6	60	192	72	98	261	650	480
HD5B-516-7	60	192	84	102	265	650	560
HD5B-516-8	60	192	96	102	265	650	640
HD5B-604-6	72	48	72	106	113	650	144
HD5B-604-7	72	48	84	106	113	650	168
HD5B-604-8	72	48	96	106	113	650	192
HD5B-606-6	72	72	72	106	137	650	216
HD5B-606-7	72	72	84	110	141	650	252
HD5B-606-8	72	72	96	110	141	650	288
HD5B-608-6	72	96	72	110	165	650	288
HD5B-608-7	72	96	84	110	165	650	336
HD5B-608-8	72	96	96	114	165	650	384
HD5B-610-6	72	120	72	110	189	650	360
HD5B-610-7	72	120	84	110	189	650	420
HD5B-610-8	72	120	96	110	189	650	480
HD5B-612-6	72	144	72	110	213	650	432
HD5B-612-7	72	144	84	114	217	650	504
HD5B-612-8	72	144	96	114	217	650	576
HD5B-614-6	72	168	72	114	241	650	504
HD5B-614-7	72	168	84	114	241	650	588
HD5B-614-8	72	168	96	114	264	650	672
HD5B-616-6	72	192	72	114	265	650	576
HD5B-616-7	72	192	84	114	288	650	672
HD5B-616-8	72	192	96	114	288	650	768
HD5B-704-6	84	48	72	118	113	650	168
HD5B-704-7	84	48	84	118	113	650	196
HD5B-704-8	84	48	96	118	117	650	224
HD5B-706-6	84	72	72	122	141	650	252
HD5B-706-7	84	72	84	122	141	650	294
HD5B-706-8	84	72	96	122	141	650	336
HD5B-708-6	84	96	72	122	165	650	336
HD5B-708-7	84	96	84	126	165	650	392
HD5B-708-8	84	96	96	122	165	650	448
HD5B-710-6	84	120	72	122	189	650	420
HD5B-710-7	84	120	84	126	189	650	490
HD5B-710-8	84	120	96	126	193	650	560
HD5B-712-6	84	144	72	126	217	650	504
HD5B-712-7	84	144	84	122	217	650	588
HD5B-712-8	84	144	96	126	240	650	672
HD5B-714-6	84	168	72	126	241	650	588
HD5B-714-7	84	168	84	126	264	650	686
HD5B-714-8	84	168	96	126	264	650	784
HD5B-716-6	84	192	72	126	288	650	672
HD5B-716-7	84	192	84	126	288	650	784
HD5B-716-8	84	192	96	130	288	650	896
HD5B-804-6	96	48	72	130	113	650	192
HD5B-804-7	96	48	84	130	117	650	224
HD5B-804-8	96	48	96	134	117	650	256
HD5B-806-6	96	72	72	134	141	650	288
HD5B-806-7	96	72	84	134	141	650	336
HD5B-806-8	96	72	96	138	141	650	384
HD5B-808-6	96	96	72	138	165	650	384
HD5B-808-7	96	96	84	134	165	650	448
HD5B-808-8	96	96	96	138	169	650	512
HD5B-810-6	96	120	72	134	189	650	480
HD5B-810-7	96	120	84	138	193	650	560
HD5B-810-8	96	120	96	138	193	650	640
HD5B-812-6	96	144	72	138	217	650	576
HD5B-812-7	96	144	84	138	240	650	672
HD5B-812-8	96	144	96	138	240	650	768
HD5B-814-6	96	168	72	138	264	650	672
HD5B-814-7	96	168	84	138	264	650	784
HD5B-814-8	96	168	96	142	264	650	896
HD5B-816-6	96	192	72	138	288	650	768
HD5B-816-7	96	192	84	142	288	650	896
HD5B-816-8	96	192	96	142	288	650	1024
